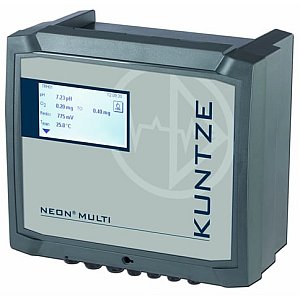

Kuntze pool monitor¶
kuntze component allows you to integrate the Kuntze water measurement
instrument in ESPHome. It uses UART (ModBUS) for communication.
Once configured you can use sensors as described below for your projects.
Kuntze devices have an RS485 (ModBUS RTU) communication port. Please see the
Kuntze papers for the pinout of the RS485 connector on your unit. ModBUS line
has to be terminated properly (with a
120Ω resistor), and since this is likely
your only unit connected to ESPHome, you should activate bus termination in the
Network menu (this component doesn’t support multiple Kuntze devices on the same
bus). ModBUS address should remain at factory default value.
The device communicates at
8E1. To connect to ESPHome, an RS485
transceiver is needed. Choose a type which does not need a trigger to send and
receive data, for example:
The controller connects to the UART of the MCU. For ESP32 GPIO 16 to TXD and 17 to RXD are the default ones but any other pins can be used as well. 3.3V to VCC and GND to GND.
If you are using the Logger Component make sure you are not using the same pins for it or otherwise disable the UART
logging with the
baud_rate: 0 option.
A configured modbus component is optional. It will be automatically created.
# Example configuration entry uart: - id: uart_bus tx_pin: GPIO16 rx_pin: GPIO17 baud_rate: 19200 parity: EVEN sensor: - platform: kuntze id: my_kuntze ph: id: ph temperature: id: temperature
ph: Measured pH value
temperature: Measured temperature value
dis1: Measured DIS 1 value
dis2: Measured DIS 2 value
redox: Measured Redox value
ec: Measured EC value
oci: Measured OCI value
All sensors are Optional and support all other options from Sensor.
