LightWaveRF light platform creates a module to dump and send commands to light switches

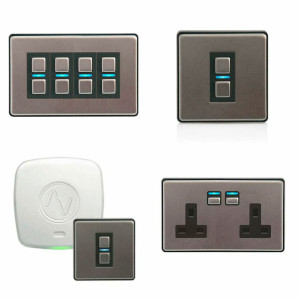

LightwaveRF switches are very common in UK automation. They allow control of lights, sockets, relays and more via RF remote or via a hub. Using an inexpensive RF transmitter and receiver you can control your devices via ESPHome.
# Example configuration entry # Specify the two pins to connect the receiver and transmitter lightwaverf: read_pin: 13 write_pin: 14 # Create a switch to trigger a light switch: - platform: template name: "Turn off sofa" id: light_off_ceiling_sofa turn_on_action: lightwaverf.send_raw: code: [0x04, 0x00, 0x00, 0x00, 0x0f, 0x03, 0x0d, 0x09, 0x08, 0x08] name: "Sofa" repeat: 1
Note: To gather the RAW codes from the remote, setup the
read_pin and observe in the logs the printing of the codes.
Send the raw data that has been captured via the dump system
on_...: then: - lightwaverf.send_raw: code: [0x04, 0x00, 0x00, 0x00, 0x0f, 0x03, 0x0d, 0x09, 0x08, 0x08] name: "Sofa" repeat: 1
name (Optional, string): The name to give for the action
code (Required, list hex): The raw dump in an array of hex
repeat (Optional, int): The number of times the message will be repeated
inverted (Optional, boolean): Send the signal inverted
The RF transmitters/receivers listed below have been confirmed to work with the current code base. If you discover others that work, please let us know!
